@@ -2,586 +2,582 @@
|
|
|
<info>
|
|
|
<title>Technical Overview</title>
|
|
|
</info>
|
|
|
-
|
|
|
<section xml:id="runtime-environment">
|
|
|
<info>
|
|
|
<title>Runtime Environment</title>
|
|
|
</info>
|
|
|
-
|
|
|
- <para>Spring Security 3.0 requires a Java 5.0 Runtime Environment or higher.
|
|
|
- As Spring Security aims to operate in a self-contained manner, there is no need
|
|
|
- to place any special configuration files into your Java Runtime
|
|
|
- Environment. In particular, there is no need to configure a special
|
|
|
- Java Authentication and Authorization Service (JAAS) policy file or
|
|
|
- place Spring Security into common classpath locations.</para>
|
|
|
-
|
|
|
- <para>Similarly, if you are using an EJB Container or Servlet
|
|
|
- Container there is no need to put any special configuration files
|
|
|
- anywhere, nor include Spring Security in a server classloader. All the required
|
|
|
- files will be contained within your application.</para>
|
|
|
-
|
|
|
- <para>This design offers maximum deployment time flexibility, as
|
|
|
- you can simply copy your target artifact (be it a JAR, WAR or EAR)
|
|
|
- from one system to another and it will immediately work.</para>
|
|
|
+ <para>Spring Security 3.0 requires a Java 5.0 Runtime Environment or higher. As Spring Security
|
|
|
+ aims to operate in a self-contained manner, there is no need to place any special
|
|
|
+ configuration files into your Java Runtime Environment. In particular, there is no need to
|
|
|
+ configure a special Java Authentication and Authorization Service (JAAS) policy file or place
|
|
|
+ Spring Security into common classpath locations.</para>
|
|
|
+ <para>Similarly, if you are using an EJB Container or Servlet Container there is no need to put
|
|
|
+ any special configuration files anywhere, nor include Spring Security in a server classloader.
|
|
|
+ All the required files will be contained within your application.</para>
|
|
|
+ <para>This design offers maximum deployment time flexibility, as you can simply copy your target
|
|
|
+ artifact (be it a JAR, WAR or EAR) from one system to another and it will immediately
|
|
|
+ work.</para>
|
|
|
</section>
|
|
|
-
|
|
|
- <section xml:id="shared-components">
|
|
|
+ <section xml:id="core-components">
|
|
|
<info>
|
|
|
- <title>Shared Components</title>
|
|
|
+ <title>Core Components</title>
|
|
|
</info>
|
|
|
-
|
|
|
- <para>Let's explore some of the most important shared components in
|
|
|
- Spring Security. Components are considered "shared" if they are
|
|
|
- central to the framework and the framework cannot operate without
|
|
|
- them. These Java types represent the building blocks of the remaining
|
|
|
- system, so it's important to understand that they're there, even if
|
|
|
- you don't need to directly interact with them.</para>
|
|
|
-
|
|
|
-
|
|
|
+ <para>In Spring Security 3.0, the contents of the <filename>spring-security-core</filename> jar
|
|
|
+ were stripped down to the bare minimum. It no longer contains any code related to
|
|
|
+ web-application security, LDAP or namespace configuration. We'll take a look here at some of
|
|
|
+ the Java types that you'll find in the core module. They represent the building blocks of the
|
|
|
+ the framework, so if you ever need to go beyond a simple namespace configuration then it's
|
|
|
+ important that you understand what they are, even if you don't actually need to directly
|
|
|
+ interact with them.</para>
|
|
|
<section>
|
|
|
- <title>
|
|
|
- SecurityContextHolder, SecurityContext and Authentication Objects
|
|
|
- </title>
|
|
|

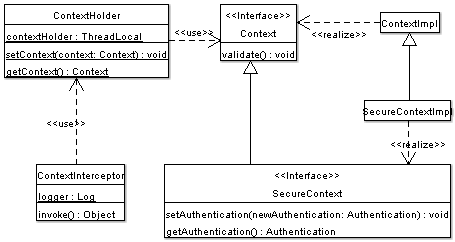

- <para>The most fundamental object is
|
|
|
- <classname>SecurityContextHolder</classname>. This is where we store
|
|
|
- details of the present security context of the application, which
|
|
|
- includes details of the principal currently using the application. By
|
|
|
- default the <classname>SecurityContextHolder</classname> uses a
|
|
|
- <literal>ThreadLocal</literal> to store these details, which means
|
|
|
- that the security context is always available to methods in the same
|
|
|
- thread of execution, even if the security context is not explicitly
|
|
|
- passed around as an argument to those methods. Using a
|
|
|
- <literal>ThreadLocal</literal> in this way is quite safe if care is
|
|
|
- taken to clear the thread after the present principal's request is
|
|
|
- processed. Of course, Spring Security takes care of this for you
|
|
|
- automatically so there is no need to worry about it.</para>
|
|
|
-
|
|
|
- <para>Some applications aren't entirely suitable for using a
|
|
|
- <literal>ThreadLocal</literal>, because of the specific way they work
|
|
|
- with threads. For example, a Swing client might want all threads in a
|
|
|
- Java Virtual Machine to use the same security context. For this
|
|
|
- situation you would use the
|
|
|
- <literal>SecurityContextHolder.MODE_GLOBAL</literal>. Other
|
|
|
- applications might want to have threads spawned by the secure thread
|
|
|
- also assume the same security identity. This is achieved by using
|
|
|
- <literal>SecurityContextHolder.MODE_INHERITABLETHREADLOCAL</literal>.
|
|
|
- You can change the mode from the default
|
|
|
- <literal>SecurityContextHolder.MODE_THREADLOCAL</literal> in two ways.
|
|
|
- The first is to set a system property. Alternatively, call a static
|
|
|
- method on <classname>SecurityContextHolder</classname>. Most applications
|
|
|
- won't need to change from the default, but if you do, take a look at
|
|
|
- the JavaDocs for <classname>SecurityContextHolder</classname> to learn
|
|
|
- more.</para>
|
|
|
-
|
|
|

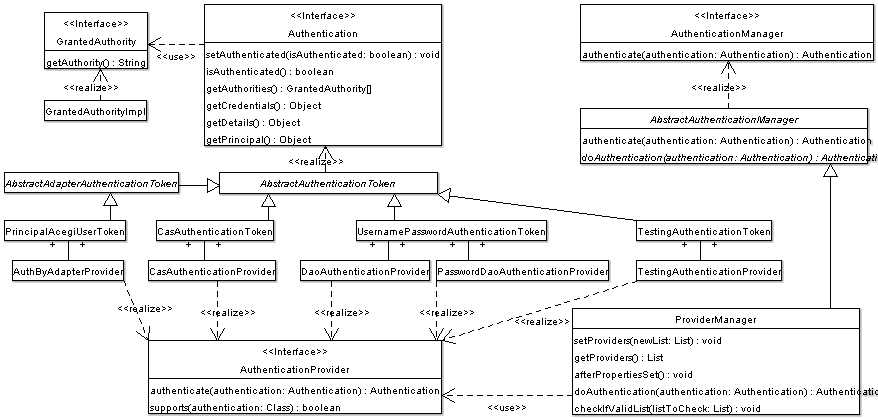

- <para>Inside the <classname>SecurityContextHolder</classname> we store
|
|
|
- details of the principal currently interacting with the application.
|
|
|
- Spring Security uses an <interfacename>Authentication</interfacename> object to
|
|
|
- represent this information. Whilst you won't normally need to create
|
|
|
- an <interfacename>Authentication</interfacename> object yourself, it is fairly
|
|
|
- common for users to query the <interfacename>Authentication</interfacename>
|
|
|
- object. You can use the following code block - from anywhere in your
|
|
|
- application - to obtain the name of the authenticated user, for example:</para>
|
|
|
-
|
|
|
- <programlisting>
|
|
|
-Object obj = SecurityContextHolder.getContext().getAuthentication().getPrincipal();
|
|
|
-
|
|
|
-if (obj instanceof UserDetails) {
|
|
|
- String username = ((UserDetails)obj).getUsername();
|
|
|
+ <title> SecurityContextHolder, SecurityContext and Authentication Objects </title>
|
|
|
+ <para>The most fundamental object is <classname>SecurityContextHolder</classname>. This is
|
|
|
+ where we store details of the present security context of the application, which includes
|
|
|
+ details of the principal currently using the application. By default the
|
|
|
+ <classname>SecurityContextHolder</classname> uses a <literal>ThreadLocal</literal> to
|
|
|
+ store these details, which means that the security context is always available to methods in
|
|
|
+ the same thread of execution, even if the security context is not explicitly passed around
|
|
|
+ as an argument to those methods. Using a <literal>ThreadLocal</literal> in this way is quite
|
|
|
+ safe if care is taken to clear the thread after the present principal's request is
|
|
|
+ processed. Of course, Spring Security takes care of this for you automatically so there is
|
|
|
+ no need to worry about it.</para>
|
|
|
+ <para>Some applications aren't entirely suitable for using a <literal>ThreadLocal</literal>,
|
|
|
+ because of the specific way they work with threads. For example, a Swing client might want
|
|
|
+ all threads in a Java Virtual Machine to use the same security context. For this situation
|
|
|
+ you would use the <literal>SecurityContextHolder.MODE_GLOBAL</literal>. Other applications
|
|
|
+ might want to have threads spawned by the secure thread also assume the same security
|
|
|
+ identity. This is achieved by using
|
|
|
+ <literal>SecurityContextHolder.MODE_INHERITABLETHREADLOCAL</literal>. You can change the
|
|
|
+ mode from the default <literal>SecurityContextHolder.MODE_THREADLOCAL</literal> in two ways.
|
|
|
+ The first is to set a system property. Alternatively, call a static method on
|
|
|
+ <classname>SecurityContextHolder</classname>. Most applications won't need to change from
|
|
|
+ the default, but if you do, take a look at the JavaDocs for
|
|
|
+ <classname>SecurityContextHolder</classname> to learn more.</para>
|
|
|
+ <section>
|
|
|
+ <title>Obtaining information about the current user</title>
|
|
|
+ <para>Inside the <classname>SecurityContextHolder</classname> we store details of the
|
|
|
+ principal currently interacting with the application. Spring Security uses an
|
|
|
+ <interfacename>Authentication</interfacename> object to represent this information. You
|
|
|
+ won't normally need to create an <interfacename>Authentication</interfacename> object
|
|
|
+ yourself, but it is fairly common for users to query the
|
|
|
+ <interfacename>Authentication</interfacename> object. You can use the following code
|
|
|
+ block - from anywhere in your application - to obtain the name of the currently
|
|
|
+ authenticated user, for example:</para>
|
|
|
+ <programlisting language="java">
|
|
|
+Object principal = SecurityContextHolder.getContext().getAuthentication().getPrincipal();
|
|
|
+
|
|
|
+if (principal instanceof UserDetails) {
|
|
|
+ String username = ((UserDetails)principal).getUsername();
|
|
|
} else {
|
|
|
- String username = obj.toString();
|
|
|
+ String username = principal.toString();
|
|
|
}</programlisting>
|
|
|
-
|
|
|
- <para>The above code introduces a number of interesting relationships
|
|
|
- and key objects. First, you will notice that there is an intermediate
|
|
|
- object between <classname>SecurityContextHolder</classname> and
|
|
|
- <interfacename>Authentication</interfacename>. The
|
|
|
- <literal>SecurityContextHolder.getContext()</literal> method is
|
|
|
- actually returning a <interfacename>SecurityContext</interfacename>.
|
|
|
-
|
|
|
- <!-- Commented out as Captcha sandboxed
|
|
|
- Spring
|
|
|
- Security uses a few different <interfacename>SecurityContext</interfacename>
|
|
|
- implementations, such as if we need to store special information
|
|
|
- related to a request that is not principal-specific.
|
|
|
-
|
|
|
- A good example of
|
|
|
- this is our JCaptcha integration, which needs to know whether the
|
|
|
- current request came from a human user or not. Because such a decision
|
|
|
- has nothing at all to do with the principal the request may or may not
|
|
|
- be authenticated as, we store it in the
|
|
|
- <interfacename>SecurityContext</interfacename>. -->
|
|
|
- </para>
|
|
|
+ <para>The object returned by the call to <methodname>getContext()</methodname> is an
|
|
|
+ instance of the <interfacename>SecurityContext</interfacename> interface. This is the
|
|
|
+ object that is kept in thread-local storage. Most authentication mechanisms withing Spring
|
|
|
+ Security return an instance of <interfacename>UserDetails</interfacename> as the principal
|
|
|
+ as we'll see below. </para>
|
|
|
+ </section>
|
|
|
</section>
|
|
|
-
|
|
|
<section>
|
|
|
<title>The UserDetailsService</title>
|
|
|
-
|
|
|
- <para>Another item to note from the above code fragment is that you
|
|
|
- can obtain a principal from the <interfacename>Authentication</interfacename>
|
|
|
- object. The principal is just an <literal>Object</literal>. Most of
|
|
|
- the time this can be cast into a <interfacename>UserDetails</interfacename>
|
|
|
- object. <interfacename>UserDetails</interfacename> is a central interface in
|
|
|
- Spring Security. It represents a principal, but in an extensible and
|
|
|
- application-specific way. Think of <interfacename>UserDetails</interfacename> as
|
|
|
- the adapter between your own user database and what Spring Security
|
|
|
- needs inside the <classname>SecurityContextHolder</classname>. Being a
|
|
|
- representation of something from your own user database, quite often
|
|
|
- you will cast the <interfacename>UserDetails</interfacename> to the original
|
|
|
- object that your application provided, so you can call
|
|
|
- business-specific methods (like <literal>getEmail()</literal>,
|
|
|
- <literal>getEmployeeNumber()</literal> and so on).</para>
|
|
|
-
|
|
|
- <para>By now you're probably wondering, so when do I provide a
|
|
|
- <interfacename>UserDetails</interfacename> object? How do I do that? I thought you
|
|
|
- said this thing was declarative and I didn't need to write any Java
|
|
|
- code - what gives? The short answer is that there is a special
|
|
|
- interface called <interfacename>UserDetailsService</interfacename>. The only
|
|
|
- method on this interface accepts a <literal>String</literal>-based
|
|
|
- username argument and returns a <interfacename>UserDetails</interfacename>. Most
|
|
|
- authentication providers that ship with Spring Security delegate to a
|
|
|
- <interfacename>UserDetailsService</interfacename> as part of the authentication
|
|
|
- process. The <interfacename>UserDetailsService</interfacename> is used to build
|
|
|
- the <interfacename>Authentication</interfacename> object that is stored in the
|
|
|
- <classname>SecurityContextHolder</classname>. The good news is that we
|
|
|
- provide a number of <interfacename>UserDetailsService</interfacename>
|
|
|
- implementations, including one that uses an in-memory map and another
|
|
|
- that uses JDBC. Most users tend to write their own, though, with such
|
|
|
- implementations often simply sitting on top of an existing Data Access
|
|
|
- Object (DAO) that represents their employees, customers, or other
|
|
|
- users of the enterprise application. Remember the advantage that
|
|
|
- whatever your UserDetailsService returns can always be obtained from
|
|
|
- the <classname>SecurityContextHolder</classname>, as per the above code
|
|
|
- fragment.</para>
|
|
|
+ <para>Another item to note from the above code fragment is that you can obtain a principal
|
|
|
+ from the <interfacename>Authentication</interfacename> object. The principal is just an
|
|
|
+ <literal>Object</literal>. Most of the time this can be cast into a
|
|
|
+ <interfacename>UserDetails</interfacename> object.
|
|
|
+ <interfacename>UserDetails</interfacename> is a central interface in Spring Security. It
|
|
|
+ represents a principal, but in an extensible and application-specific way. Think of
|
|
|
+ <interfacename>UserDetails</interfacename> as the adapter between your own user database
|
|
|
+ and what Spring Security needs inside the <classname>SecurityContextHolder</classname>.
|
|
|
+ Being a representation of something from your own user database, quite often you will cast
|
|
|
+ the <interfacename>UserDetails</interfacename> to the original object that your application
|
|
|
+ provided, so you can call business-specific methods (like <literal>getEmail()</literal>,
|
|
|
+ <literal>getEmployeeNumber()</literal> and so on).</para>
|
|
|
+ <para>By now you're probably wondering, so when do I provide a
|
|
|
+ <interfacename>UserDetails</interfacename> object? How do I do that? I thought you said
|
|
|
+ this thing was declarative and I didn't need to write any Java code - what gives? The short
|
|
|
+ answer is that there is a special interface called
|
|
|
+ <interfacename>UserDetailsService</interfacename>. The only method on this interface
|
|
|
+ accepts a <literal>String</literal>-based username argument and returns a
|
|
|
+ <interfacename>UserDetails</interfacename>. Most authentication providers that ship with
|
|
|
+ Spring Security delegate to a <interfacename>UserDetailsService</interfacename> as part of
|
|
|
+ the authentication process. The <interfacename>UserDetailsService</interfacename> is used to
|
|
|
+ build the <interfacename>Authentication</interfacename> object that is stored in the
|
|
|
+ <classname>SecurityContextHolder</classname>. The good news is that we provide a number of
|
|
|
+ <interfacename>UserDetailsService</interfacename> implementations, including one that uses
|
|
|
+ an in-memory map and another that uses JDBC. Most users tend to write their own, though,
|
|
|
+ with their implementations often simply sitting on top of an existing Data Access Object
|
|
|
+ (DAO) that represents their employees, customers, or other users of the enterprise
|
|
|
+ application. Remember the advantage that whatever your UserDetailsService returns can always
|
|
|
+ be obtained from the <classname>SecurityContextHolder</classname>, as per the above code
|
|
|
+ fragment.</para>
|
|
|
</section>
|
|
|
-
|
|
|
-
|
|
|
<section xml:id="tech-granted-authority">
|
|
|
<title>GrantedAuthority</title>
|
|
|
-
|
|
|
- <para>Besides the principal, another important method provided by
|
|
|
- <interfacename>Authentication</interfacename> is
|
|
|
- <literal>getAuthorities(</literal>). This method provides an array of
|
|
|
- <interfacename>GrantedAuthority</interfacename> objects. A
|
|
|
- <interfacename>GrantedAuthority</interfacename> is, not surprisingly, an authority
|
|
|
- that is granted to the principal. Such authorities are usually
|
|
|
- "roles", such as <literal>ROLE_ADMINISTRATOR</literal> or
|
|
|
- <literal>ROLE_HR_SUPERVISOR</literal>. These roles are later on
|
|
|
- configured for web authorization, method authorization and domain
|
|
|
- object authorization. Other parts of Spring Security are capable of
|
|
|
- interpreting these authorities, and expect them to be present.
|
|
|
- <interfacename>GrantedAuthority</interfacename> objects are usually loaded by the
|
|
|
- <interfacename>UserDetailsService</interfacename>.</para>
|
|
|
-
|
|
|
- <para>Usually the <interfacename>GrantedAuthority</interfacename> objects are
|
|
|
- application-wide permissions. They are not specific to a given domain
|
|
|
- object. Thus, you wouldn't likely have a
|
|
|
- <interfacename>GrantedAuthority</interfacename> to represent a permission to
|
|
|
- <literal>Employee</literal> object number 54, because if there are
|
|
|
- thousands of such authorities you would quickly run out of memory (or,
|
|
|
- at the very least, cause the application to take a long time to
|
|
|
- authenticate a user). Of course, Spring Security is expressly designed
|
|
|
- to handle this common requirement, but you'd instead use the project's
|
|
|
- domain object security capabilities for this purpose.</para>
|
|
|
+ <para>Besides the principal, another important method provided by
|
|
|
+ <interfacename>Authentication</interfacename> is <literal>getAuthorities(</literal>). This
|
|
|
+ method provides an array of <interfacename>GrantedAuthority</interfacename> objects. A
|
|
|
+ <interfacename>GrantedAuthority</interfacename> is, not surprisingly, an authority that is
|
|
|
+ granted to the principal. Such authorities are usually "roles", such as
|
|
|
+ <literal>ROLE_ADMINISTRATOR</literal> or <literal>ROLE_HR_SUPERVISOR</literal>. These
|
|
|
+ roles are later on configured for web authorization, method authorization and domain object
|
|
|
+ authorization. Other parts of Spring Security are capable of interpreting these authorities,
|
|
|
+ and expect them to be present. <interfacename>GrantedAuthority</interfacename> objects are
|
|
|
+ usually loaded by the <interfacename>UserDetailsService</interfacename>.</para>
|
|
|
+ <para>Usually the <interfacename>GrantedAuthority</interfacename> objects are application-wide
|
|
|
+ permissions. They are not specific to a given domain object. Thus, you wouldn't likely have
|
|
|
+ a <interfacename>GrantedAuthority</interfacename> to represent a permission to
|
|
|
+ <literal>Employee</literal> object number 54, because if there are thousands of such
|
|
|
+ authorities you would quickly run out of memory (or, at the very least, cause the
|
|
|
+ application to take a long time to authenticate a user). Of course, Spring Security is
|
|
|
+ expressly designed to handle this common requirement, but you'd instead use the project's
|
|
|
+ domain object security capabilities for this purpose.</para>
|
|
|
</section>
|
|
|
-
|
|
|
- <section xml:id="tech-sec-context-persistence">
|
|
|
- <title>Storing the <interfacename>SecurityContext</interfacename></title>
|
|
|
- <para>Last but not least, depending on the type of application, there may need to be
|
|
|
- a strategy in place to store the security context between user operations.
|
|
|
- In a typical web application, for example, a user logs in once and is subsequently identified
|
|
|
- by their session Id. The server caches the principal information for the duration session.
|
|
|
- In Spring Security, the responsibility for storing the <interfacename>SecurityContext</interfacename>
|
|
|
- between requests falls to the <classname>SecurityContextPersistenceFilter</classname>, which
|
|
|
- by default stores the context as an <literal>HttpSession</literal> attribute between HTTP
|
|
|
- requests. It restores the context to the <classname>SecurityContextHolder</classname> for each request
|
|
|
- and, crucially, clears the <classname>SecurityContextHolder</classname> when the request completes.
|
|
|
- You should never interact directly with the <literal>HttpSession</literal> for security purposes.
|
|
|
- There is simply no justification for doing so - always use the <classname>SecurityContextHolder</classname>
|
|
|
- instead.
|
|
|
- </para>
|
|
|
- <para>
|
|
|
- Many other types of application (for example, a stateless RESTful web service) do not use HTTP sessions and
|
|
|
- will re-authenticate on every request. However, it is still important that the
|
|
|
- <classname>SecurityContextPersistenceFilter</classname> is included in the
|
|
|
- chain to make sure that the <classname>SecurityContextHolder</classname> is cleared after each request,
|
|
|
- even if
|
|
|
- </para>
|
|
|
- </section>
|
|
|
-
|
|
|
<section>
|
|
|
<title>Summary</title>
|
|
|
- <para>Just to recap, the major building blocks of Spring Security
|
|
|
- are:</para>
|
|
|
-
|
|
|
- <itemizedlist spacing="compact">
|
|
|
- <listitem>
|
|
|
- <para><classname>SecurityContextHolder</classname>, to provide any
|
|
|
- type access to the <interfacename>SecurityContext</interfacename>.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><interfacename>SecurityContext</interfacename>, to hold the
|
|
|
- <interfacename>Authentication</interfacename> and possibly request-specific
|
|
|
- security information.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><classname>SecurityContextPersistenceFilter</classname>, to
|
|
|
- store the <interfacename>SecurityContext</interfacename> (typically in the
|
|
|
- <literal>HttpSession</literal>) between web requests.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><interfacename>Authentication</interfacename>, to represent the
|
|
|
- principal in a Spring Security-specific manner.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><interfacename>GrantedAuthority</interfacename>, to reflect the
|
|
|
- application-wide permissions granted to a principal.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><interfacename>UserDetails</interfacename>, to provide the necessary
|
|
|
- information to build an Authentication object from your
|
|
|
- application's DAOs.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para><interfacename>UserDetailsService</interfacename>, to create a
|
|
|
- <interfacename>UserDetails</interfacename> when passed in a
|
|
|
- <literal>String</literal>-based username (or certificate ID or
|
|
|
- alike).</para>
|
|
|
- </listitem>
|
|
|
- </itemizedlist>
|
|
|
-
|
|
|
- <para>Now that you've gained an understanding of these repeatedly-used
|
|
|
- components, let's take a closer look at the process of
|
|
|
- authentication.</para>
|
|
|
- </section>
|
|
|
- </section>
|
|
|
-
|
|
|
- <section xml:id="common-authentication">
|
|
|
- <info><title>Authentication</title></info>
|
|
|
-
|
|
|
- <para>As mentioned in the beginning of this reference guide, Spring
|
|
|
- Security can participate in many different authentication
|
|
|
- environments. Whilst we recommend people use Spring Security for
|
|
|
- authentication and not integrate with existing Container Managed
|
|
|
- Authentication, it is nevertheless supported - as is integrating with
|
|
|
- your own proprietary authentication system. Let's first explore
|
|
|
- authentication from the perspective of Spring Security managing web
|
|
|
- security entirely on its own, which is illustrative of the most
|
|
|
- complex and most common situation.</para>
|
|
|
-
|
|
|
- <para>Consider a typical web application's authentication
|
|
|
- process:</para>
|
|
|
-
|
|
|
- <orderedlist inheritnum="ignore" continuation="restarts">
|
|
|
- <listitem>
|
|
|
- <para>You visit the home page, and click on a link.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>A request goes to the server, and the server decides that
|
|
|
- you've asked for a protected resource.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>As you're not presently authenticated, the server sends back
|
|
|
- a response indicating that you must authenticate. The response
|
|
|
- will either be an HTTP response code, or a redirect to a
|
|
|
- particular web page.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>Depending on the authentication mechanism, your browser will
|
|
|
- either redirect to the specific web page so that you can fill out
|
|
|
- the form, or the browser will somehow retrieve your identity (eg a
|
|
|
- BASIC authentication dialogue box, a cookie, a X509 certificate
|
|
|
- etc).</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>The browser will send back a response to the server. This
|
|
|
- will either be an HTTP POST containing the contents of the form
|
|
|
- that you filled out, or an HTTP header containing your
|
|
|
- authentication details.</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>Next the server will decide whether or not the presented
|
|
|
- credentials are valid. If they're valid, the next step will
|
|
|
- happen. If they're invalid, usually your browser will be asked to
|
|
|
- try again (so you return to step two above).</para>
|
|
|
- </listitem>
|
|
|
-
|
|
|
- <listitem>
|
|
|
- <para>The original request that you made to cause the
|
|
|
- authentication process will be retried. Hopefully you've
|
|
|
- authenticated with sufficient granted authorities to access the
|
|
|
- protected resource. If you have sufficient access, the request
|
|
|
- will be successful. Otherwise, you'll receive back an HTTP error
|
|
|
- code 403, which means "forbidden".</para>
|
|
|
- </listitem>
|
|
|
- </orderedlist>
|
|
|
-
|
|
|
- <para>Spring Security has distinct classes responsible for most of the
|
|
|
- steps described above. The main participants (in the order that they
|
|
|
- are used) are the <classname>ExceptionTranslationFilter</classname>, an
|
|
|
- <interfacename>AuthenticationEntryPoint</interfacename>, an authentication
|
|
|
- mechanism, and an <classname>AuthenticationProvider</classname>.</para>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>ExceptionTranslationFilter</title>
|
|
|
- <para><classname>ExceptionTranslationFilter</classname> is a Spring
|
|
|
- Security filter that has responsibility for detecting any Spring
|
|
|
- Security exceptions that are thrown. Such exceptions will generally be
|
|
|
- thrown by an <classname>AbstractSecurityInterceptor</classname>, which is
|
|
|
- the main provider of authorization services. We will discuss
|
|
|
- <classname>AbstractSecurityInterceptor</classname> in the next section,
|
|
|
- but for now we just need to know that it produces Java exceptions and
|
|
|
- knows nothing about HTTP or how to go about authenticating a
|
|
|
- principal. Instead the <classname>ExceptionTranslationFilter</classname>
|
|
|
- offers this service, with specific responsibility for either returning
|
|
|
- error code 403 (if the principal has been authenticated and therefore
|
|
|
- simply lacks sufficient access - as per step seven above), or
|
|
|
- launching an <interfacename>AuthenticationEntryPoint</interfacename> (if the
|
|
|
- principal has not been authenticated and therefore we need to go
|
|
|
- commence step three).</para>
|
|
|
- </section>
|
|
|
-
|
|
|
- <section xml:id="tech-auth-entry-point">
|
|
|
- <title>AuthenticationEntryPoint</title>
|
|
|
- <para>The <interfacename>AuthenticationEntryPoint</interfacename> is responsible
|
|
|
- for step three in the above list. As you can imagine, each web
|
|
|
- application will have a default authentication strategy (well, this
|
|
|
- can be configured like nearly everything else in Spring Security, but
|
|
|
- let's keep it simple for now). Each major authentication system will
|
|
|
- have its own <interfacename>AuthenticationEntryPoint</interfacename>
|
|
|
- implementation, which takes actions such as described in step
|
|
|
- three.</para>
|
|
|
-
|
|
|
- <para>After your browser decides to submit your authentication
|
|
|
- credentials (either as an HTTP form post or HTTP header) there needs
|
|
|
- to be something on the server that "collects" these authentication
|
|
|
- details. By now we're at step six in the above list. In Spring
|
|
|
- Security we have a special name for the function of collecting
|
|
|
- authentication details from a user agent (usually a web browser), and
|
|
|
- that name is "authentication mechanism". After the authentication
|
|
|
- details are collected from the user agent, an
|
|
|
- "<interfacename>Authentication</interfacename> request" object is built and then
|
|
|
- presented to an
|
|
|
- <interfacename>AuthenticationProvider</interfacename>.</para>
|
|
|
+ <para>Just to recap, the major building blocks of Spring Security that we've seen so far
|
|
|
+ are:</para>
|
|
|
+ <itemizedlist spacing="compact">
|
|
|
+ <listitem>
|
|
|
+ <para><classname>SecurityContextHolder</classname>, to provide access to the
|
|
|
+ <interfacename>SecurityContext</interfacename>.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para><interfacename>SecurityContext</interfacename>, to hold the
|
|
|
+ <interfacename>Authentication</interfacename> and possibly request-specific security
|
|
|
+ information.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para><interfacename>Authentication</interfacename>, to represent the principal in a
|
|
|
+ Spring Security-specific manner.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para><interfacename>GrantedAuthority</interfacename>, to reflect the application-wide
|
|
|
+ permissions granted to a principal.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para><interfacename>UserDetails</interfacename>, to provide the necessary information to
|
|
|
+ build an Authentication object from your application's DAOs or other source source of
|
|
|
+ security data.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para><interfacename>UserDetailsService</interfacename>, to create a
|
|
|
+ <interfacename>UserDetails</interfacename> when passed in a
|
|
|
+ <literal>String</literal>-based username (or certificate ID or the like).</para>
|
|
|
+ </listitem>
|
|
|
+ </itemizedlist>
|
|
|
+ <para>Now that you've gained an understanding of these repeatedly-used components, let's take
|
|
|
+ a closer look at the process of authentication.</para>
|
|
|
</section>
|
|
|
-
|
|
|
+ </section>
|
|
|
+ <section xml:id="tech-intro-authentication">
|
|
|
+ <info>
|
|
|
+ <title>Authentication</title>
|
|
|
+ </info>
|
|
|
+ <para>Spring Security can participate in many different authentication environments. While we
|
|
|
+ recommend people use Spring Security for authentication and not integrate with existing
|
|
|
+ Container Managed Authentication, it is nevertheless supported - as is integrating with your
|
|
|
+ own proprietary authentication system. </para>
|
|
|
<section>
|
|
|
- <title>AuthenticationProvider</title>
|
|
|
- <para>The last player in the Spring Security authentication process is
|
|
|
- an <classname>AuthenticationProvider</classname>. Quite simply, it is
|
|
|
- responsible for taking an <interfacename>Authentication</interfacename> request
|
|
|
- object and deciding whether or not it is valid. The provider will
|
|
|
- either throw an exception or return a fully populated
|
|
|
- <interfacename>Authentication</interfacename> object. Remember our good friends,
|
|
|
- <interfacename>UserDetails</interfacename> and
|
|
|
- <interfacename>UserDetailsService</interfacename>? If not, head back to the
|
|
|
- previous section and refresh your memory. Most
|
|
|
- <classname>AuthenticationProvider</classname>s will ask a
|
|
|
- <interfacename>UserDetailsService</interfacename> to provide a
|
|
|
- <interfacename>UserDetails</interfacename> object. As mentioned earlier, most
|
|
|
- application will provide their own
|
|
|
- <interfacename>UserDetailsService</interfacename>, although some will be able to
|
|
|
- use the JDBC or in-memory implementation that ships with Spring
|
|
|
- Security. The resultant <interfacename>UserDetails</interfacename> object - and
|
|
|
- particularly the <literal>GrantedAuthority[]</literal>s contained
|
|
|
- within the <interfacename>UserDetails</interfacename> object - will be used when
|
|
|
- building the fully populated <interfacename>Authentication</interfacename>
|
|
|
- object.</para>
|
|
|
- <para>After the authentication mechanism receives back the
|
|
|
- fully-populated <interfacename>Authentication</interfacename> object, it will deem
|
|
|
- the request valid, put the <interfacename>Authentication</interfacename> into the
|
|
|
- <classname>SecurityContextHolder</classname>, and cause the original
|
|
|
- request to be retried (step seven above). If, on the other hand, the
|
|
|
- <classname>AuthenticationProvider</classname> rejected the request, the
|
|
|
- authentication mechanism will ask the user agent to retry (step two
|
|
|
- above).</para>
|
|
|
-
|
|
|
+ <title>What is authentication in Spring Security?</title>
|
|
|
+ <para> Let's consider a standard authentication scenario that everyone is familiar with. <orderedlist>
|
|
|
+ <listitem>
|
|
|
+ <para>A user is prompted to log in with a username and password.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The system (successfully) verifies that the password is correct for the
|
|
|
+ username.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The context information for that user is obtained (their list of roles and so
|
|
|
+ on).</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>A security context is established for the user</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The user proceeds, potentially to perform some operation which is potentially
|
|
|
+ protected by an access control mechanism which checks the required permissions for the
|
|
|
+ operation against the current security context information. </para>
|
|
|
+ </listitem>
|
|
|
+ </orderedlist> The first three items constitute the authentication process so we'll take a
|
|
|
+ look at how these take place within Spring Security.<orderedlist>
|
|
|
+ <listitem>
|
|
|
+ <para>The username and password are obtained and combined into an instance of
|
|
|
+ <classname>UsernamePasswordAuthenticationToken</classname> (an instance of the
|
|
|
+ <interfacename>Authentication</interfacename> interface, which we saw
|
|
|
+ earlier).</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The token is passed to an instance of
|
|
|
+ <interfacename>AuthenticationManager</interfacename> for validation.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The <interfacename>AuthenticationManager</interfacename> returns a fully populated
|
|
|
+ <interfacename>Authentication</interfacename> instance on successful
|
|
|
+ authentication.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The security context is established by calling
|
|
|
+ <code>SecurityContextHolder.getContext().setAuthentication(...)</code>, passing in
|
|
|
+ the returned authentication object.</para>
|
|
|
+ </listitem>
|
|
|
+ </orderedlist>From that point on, the user is considered to be authenticated. Let's look at
|
|
|
+ some code as an
|
|
|
+ example.<programlisting language="java">import org.springframework.security.authentication.*;
|
|
|
+import org.springframework.security.core.*;
|
|
|
+import org.springframework.security.core.authority.GrantedAuthorityImpl;
|
|
|
+import org.springframework.security.core.context.SecurityContextHolder;
|
|
|
+
|
|
|
+public class AuthenticationExample {
|
|
|
+ private static AuthenticationManager am = new SampleAuthenticationManager();
|
|
|
+
|
|
|
+ public static void main(String[] args) throws Exception {
|
|
|
+ BufferedReader in = new BufferedReader(new InputStreamReader(System.in));
|
|
|
+
|
|
|
+ while(true) {
|
|
|
+ System.out.println("Please enter your username:");
|
|
|
+ String name = in.readLine();
|
|
|
+ System.out.println("Please enter your password:");
|
|
|
+ String password = in.readLine();
|
|
|
+ try {
|
|
|
+ Authentication request = new UsernamePasswordAuthenticationToken(name, password);
|
|
|
+ Authentication result = am.authenticate(request);
|
|
|
+ SecurityContextHolder.getContext().setAuthentication(result);
|
|
|
+ break;
|
|
|
+ } catch(AuthenticationException e) {
|
|
|
+ System.out.println("Authentication failed: " + e.getMessage());
|
|
|
+ }
|
|
|
+ }
|
|
|
+ System.out.println("Successfully authenticated. Security context contains: " +
|
|
|
+ SecurityContextHolder.getContext().getAuthentication());
|
|
|
+ }
|
|
|
+}
|
|
|
+
|
|
|
+class SampleAuthenticationManager implements AuthenticationManager {
|
|
|
+ static final List<GrantedAuthority> AUTHORITIES = new ArrayList<GrantedAuthority>();
|
|
|
+
|
|
|
+ static {
|
|
|
+ AUTHORITIES.add(new GrantedAuthorityImpl("ROLE_USER"));
|
|
|
+ }
|
|
|
+
|
|
|
+ public Authentication authenticate(Authentication auth) throws AuthenticationException {
|
|
|
+ if (auth.getName().equals(auth.getCredentials())) {
|
|
|
+ return new UsernamePasswordAuthenticationToken(auth.getName(),
|
|
|
+ auth.getCredentials(), AUTHORITIES);
|
|
|
+ }
|
|
|
+ throw new BadCredentialsException("Bad Credentials");
|
|
|
+ }
|
|
|
+}</programlisting>Here
|
|
|
+ we have written a little program that asks the user to enter a username and password
|
|
|
+ and performs the above sequence. The <interfacename>AuthenticationManager</interfacename> which
|
|
|
+ we've implemented here will authenticate any user whose username and password are the same.
|
|
|
+ It assigns a single role to every user. The output from the above will be something
|
|
|
+ like:<programlisting>
|
|
|
+Please enter your username:
|
|
|
+bob
|
|
|
+Please enter your password:
|
|
|
+password
|
|
|
+Authentication failed: Bad Credentials
|
|
|
+Please enter your username:
|
|
|
+bob
|
|
|
+Please enter your password:
|
|
|
+bob
|
|
|
+Successfully authenticated. Security context contains: \
|
|
|
+ org.springframework.security.authentication.UsernamePasswordAuthenticationToken@441d0230: \
|
|
|
+ Principal: bob; Password: [PROTECTED]; \
|
|
|
+ Authenticated: true; Details: null; \
|
|
|
+ Granted Authorities: ROLE_USER
|
|
|
+ </programlisting></para>
|
|
|
+ <para>Note that you don't normally need to write any code like this. The process will normally
|
|
|
+ occur internally, in a web authentication filter for example. We've just included the code
|
|
|
+ here to show that the question of what actually constitutes authentication in Spring Security
|
|
|
+ has quite a simple answer. A user is authenticated when the
|
|
|
+ <classname>SecurityContextHolder</classname> contains a fully populated
|
|
|
+ <interfacename>Authentiation</interfacename> object.</para>
|
|
|
+ <section>
|
|
|
+ <title>Setting the SecurityContextHolder Contents Directly</title>
|
|
|
+ <para>In fact, Spring Security doesn't mind how you put the
|
|
|
+ <interfacename>Authentication</interfacename> object inside the
|
|
|
+ <classname>SecurityContextHolder</classname>. The only critical requirement is that the
|
|
|
+ <classname>SecurityContextHolder</classname> contains an
|
|
|
+ <interfacename>Authentication</interfacename> that represents a principal before the
|
|
|

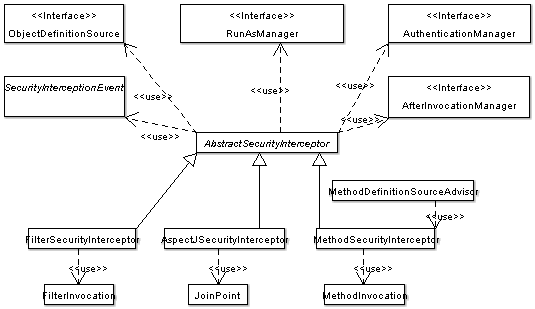

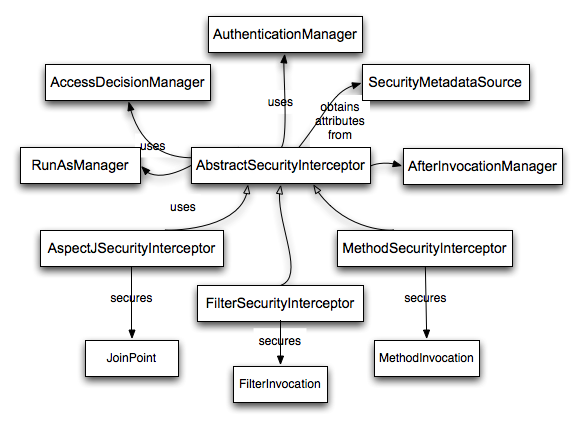

+ <classname>AbstractSecurityInterceptor</classname> (which we'll see more about later)
|
|
|
+ needs to authorize a user operation.</para>
|
|
|
+ <para>You can (and many users do) write their own filters or MVC controllers to provide
|
|
|
+ interoperability with authentication systems that are not based on Spring Security. For
|
|
|
+ example, you might be using Container-Managed Authentication which makes the current user
|
|
|
+ available from a ThreadLocal or JNDI location. Or you might work for a company that has a
|
|
|
+ legacy proprietary authentication system, which is a corporate "standard" over which you
|
|
|
+ have little control. In situations like this it's quite easy to get Spring Security to
|
|
|
+ work, and still provide authorization capabilities. All you need to do is write a filter
|
|
|
+ (or equivalent) that reads the third-party user information from a location, build a
|
|
|
+ Spring Security-specific <interfacename>Authentication</interfacename> object, and put it
|
|
|
+ onto the <classname>SecurityContextHolder</classname>.</para>
|
|
|
+ </section>
|
|
|
+ <section>
|
|
|
+ <title>The <interfacename>AuthenticationManager</interfacename></title>
|
|
|
+ <para>The <interfacename>AuthenticationManager</interfacename> is just an interface, so the
|
|
|
+ implementation can be anything we choose, but how does it work in practice. What if we
|
|
|
+ need to check multiple authentication databases? The default implementation in Spring
|
|
|
+ Security is called <classname>ProviderManager</classname> and rather than handling the
|
|
|
+ authentication request itself, it delegates to a list of configured
|
|
|
+ <classname>AuthenticationProvider</classname>s, each of which is queried in turn to see
|
|
|
+ if it can perform the authentication. Each provider will either throw an exception or
|
|
|
+ return a fully populated <interfacename>Authentication</interfacename> object. Remember
|
|
|
+ our good friends, <interfacename>UserDetails</interfacename> and
|
|
|
+ <interfacename>UserDetailsService</interfacename>? If not, head back to the previous
|
|
|
+ section and refresh your memory. Most <classname>AuthenticationProvider</classname>s will
|
|
|
+ ask a <interfacename>UserDetailsService</interfacename> to provide a
|
|
|
+ <interfacename>UserDetails</interfacename> object. The resulting
|
|
|
+ <interfacename>UserDetails</interfacename> object - and particularly the
|
|
|
+ <literal>GrantedAuthority</literal>s it contains - will be used when building the fully
|
|
|
+ populated <interfacename>Authentication</interfacename> object.</para>
|
|
|
+ </section>
|
|
|
</section>
|
|
|
-
|
|
|
<section>
|
|
|
- <title>Setting the SecurityContextHolder Contents Directly</title>
|
|
|
- <para>Whilst this describes the typical authentication workflow, the
|
|
|
- good news is that Spring Security doesn't mind how you put an
|
|
|
- <interfacename>Authentication</interfacename> inside the
|
|
|
- <classname>SecurityContextHolder</classname>. The only critical
|
|
|
- requirement is that the <classname>SecurityContextHolder</classname>
|
|
|
- contains an <interfacename>Authentication</interfacename> that represents a
|
|
|
- principal before the <classname>AbstractSecurityInterceptor</classname>
|
|
|
- needs to authorize a request.</para>
|
|
|
-
|
|
|
- <para>You can (and many users do) write their own filters or MVC
|
|
|
- controllers to provide interoperability with authentication systems
|
|
|
- that are not based on Spring Security. For example, you might be using
|
|
|
- Container-Managed Authentication which makes the current user
|
|
|
- available from a ThreadLocal or JNDI location. Or you might work for a
|
|
|
- company that has a legacy proprietary authentication system, which is
|
|
|
- a corporate "standard" over which you have little control. In such
|
|
|
- situations it's quite easy to get Spring Security to work, and still
|
|
|
- provide authorization capabilities. All you need to do is write a
|
|
|
- filter (or equivalent) that reads the third-party user information
|
|
|
- from a location, build a Spring Security-specific Authentication
|
|
|
- object, and put it onto the SecurityContextHolder. It's quite easy to
|
|
|
- do this, and it is a fully-supported integration approach.</para>
|
|
|
+ <title>Authentication in a Web Application</title>
|
|
|
+ <para> Now let's explore the situation where you are using Spring Security in a web
|
|
|
+ application (without <filename>web.xml</filename> security enabled). How is a user
|
|
|
+ authenticated and the security context established?</para>
|
|
|
+ <para>Consider a typical web application's authentication process:</para>
|
|
|
+ <orderedlist inheritnum="ignore" continuation="restarts">
|
|
|
+ <listitem>
|
|
|
+ <para>You visit the home page, and click on a link.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>A request goes to the server, and the server decides that you've asked for a
|
|
|
+ protected resource.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>As you're not presently authenticated, the server sends back a response indicating
|
|
|
+ that you must authenticate. The response will either be an HTTP response code, or a
|
|
|
+ redirect to a particular web page.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Depending on the authentication mechanism, your browser will either redirect to the
|
|
|
+ specific web page so that you can fill out the form, or the browser will somehow
|
|
|
+ retrieve your identity (via a BASIC authentication dialogue box, a cookie, a X.509
|
|
|
+ certificate etc.).</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The browser will send back a response to the server. This will either be an HTTP
|
|
|
+ POST containing the contents of the form that you filled out, or an HTTP header
|
|
|
+ containing your authentication details.</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Next the server will decide whether or not the presented credentials are valid. If
|
|
|
+ they're valid, the next step will happen. If they're invalid, usually your browser will
|
|
|
+ be asked to try again (so you return to step two above).</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>The original request that you made to cause the authentication process will be
|
|
|
+ retried. Hopefully you've authenticated with sufficient granted authorities to access
|
|
|
+ the protected resource. If you have sufficient access, the request will be successful.
|
|
|
+ Otherwise, you'll receive back an HTTP error code 403, which means "forbidden".</para>
|
|
|
+ </listitem>
|
|
|
+ </orderedlist>
|
|
|
+ <para>Spring Security has distinct classes responsible for most of the steps described above.
|
|
|
+ The main participants (in the order that they are used) are the
|
|
|
+ <classname>ExceptionTranslationFilter</classname>, an
|
|
|
+ <interfacename>AuthenticationEntryPoint</interfacename> and an <quote>authentication
|
|
|
+ mechanism</quote>, which is resposible for calling the
|
|
|
+ <classname>AuthenticationManager</classname> which we saw in the previous section.</para>
|
|
|
+ <section>
|
|
|
+ <title>ExceptionTranslationFilter</title>
|
|
|
+ <para><classname>ExceptionTranslationFilter</classname> is a Spring Security filter that has
|
|
|
+ responsibility for detecting any Spring Security exceptions that are thrown. Such
|
|
|
+ exceptions will generally be thrown by an
|
|
|
+ <classname>AbstractSecurityInterceptor</classname>, which is the main provider of
|
|
|
+ authorization services. We will discuss <classname>AbstractSecurityInterceptor</classname>
|
|
|
+ in the next section, but for now we just need to know that it produces Java exceptions and
|
|
|
+ knows nothing about HTTP or how to go about authenticating a principal. Instead the
|
|
|
+ <classname>ExceptionTranslationFilter</classname> offers this service, with specific
|
|
|
+ responsibility for either returning error code 403 (if the principal has been
|
|
|
+ authenticated and therefore simply lacks sufficient access - as per step seven above), or
|
|
|
+ launching an <interfacename>AuthenticationEntryPoint</interfacename> (if the principal has
|
|
|
+ not been authenticated and therefore we need to go commence step three).</para>
|
|
|
+ </section>
|
|
|
+ <section xml:id="tech-auth-entry-point">
|
|
|
+ <title>AuthenticationEntryPoint</title>
|
|
|
+ <para>The <interfacename>AuthenticationEntryPoint</interfacename> is responsible for step
|
|
|
+ three in the above list. As you can imagine, each web application will have a default
|
|
|
+ authentication strategy (well, this can be configured like nearly everything else in
|
|
|
+ Spring Security, but let's keep it simple for now). Each major authentication system will
|
|
|
+ have its own <interfacename>AuthenticationEntryPoint</interfacename> implementation, which
|
|
|
+ typically performs one of the actions described in step 3.</para>
|
|
|
+ </section>
|
|
|
+ <section>
|
|
|
+ <title>Authentication Mechanism</title>
|
|
|
+ <para>Once your browser submits your authentication credentials (either as an HTTP form post
|
|
|
+ or HTTP header) there needs to be something on the server that <quote>collects</quote>
|
|
|
+ these authentication details. By now we're at step six in the above list. In Spring
|
|
|
+ Security we have a special name for the function of collecting authentication details from
|
|
|
+ a user agent (usually a web browser), referring to it as the <quote>authentication
|
|
|
+ mechanism</quote>. Examples are form-base login and Basic authentication. Once the
|
|
|
+ authentication details have been collected from the user agent, an
|
|
|
+ <interfacename>Authentication</interfacename>
|
|
|
+ <quote>request</quote> object is built and then presented to the
|
|
|
+ <interfacename>AuthenticationManager</interfacename>.</para>
|
|
|
+ <para>After the authentication mechanism receives back the fully-populated
|
|
|
+ <interfacename>Authentication</interfacename> object, it will deem the request valid,
|
|
|
+ put the <interfacename>Authentication</interfacename> into the
|
|
|
+ <classname>SecurityContextHolder</classname>, and cause the original request to be
|
|
|
+ retried (step seven above). If, on the other hand, the
|
|
|
+ <classname>AuthenticationManager</classname> rejected the request, the authentication
|
|
|
+ mechanism will ask the user agent to retry (step two above).</para>
|
|
|
+ </section>
|
|
|
+ <section xml:id="tech-sec-context-persistence">
|
|
|
+ <title>Storing the <interfacename>SecurityContext</interfacename> between requests</title>
|
|
|
+ <para>Depending on the type of application, there may need to be a strategy in place to
|
|
|
+ store the security context between user operations. In a typical web application, a user
|
|
|
+ logs in once and is subsequently identified by their session Id. The server caches the
|
|
|
+ principal information for the duration session. In Spring Security, the responsibility for
|
|
|
+ storing the <interfacename>SecurityContext</interfacename> between requests falls to the
|
|
|
+ <classname>SecurityContextPersistenceFilter</classname>, which by default stores the
|
|
|
+ context as an <literal>HttpSession</literal> attribute between HTTP requests. It restores
|
|
|
+ the context to the <classname>SecurityContextHolder</classname> for each request and,
|
|
|
+ crucially, clears the <classname>SecurityContextHolder</classname> when the request
|
|
|
+ completes. You shouldn't interact directly with the <literal>HttpSession</literal> for
|
|
|
+ security purposes. There is simply no justification for doing so - always use the
|
|
|
+ <classname>SecurityContextHolder</classname> instead. </para>
|
|
|
+ <para> Many other types of application (for example, a stateless RESTful web service) do not
|
|
|
+ use HTTP sessions and will re-authenticate on every request. However, it is still
|
|
|
+ important that the <classname>SecurityContextPersistenceFilter</classname> is included in
|
|
|
+ the chain to make sure that the <classname>SecurityContextHolder</classname> is cleared
|
|
|
+ after each request.</para>
|
|
|
+ </section>
|
|
|
</section>
|
|
|
</section>
|
|
|
-
|
|
|
- <section xml:id="secure-objects">
|
|
|
- <info><title>Secure Objects</title></info>
|
|
|
-
|
|
|
- <para>Spring Security uses the term "secure object" to refer to any
|
|
|
- object that can have security (such as an authorization decision) applied to it.
|
|
|
- The most common examples are method invocations and web requests.
|
|
|
- </para>
|
|
|
-
|
|
|
+ <section xml:id="tech-intro-access-control">
|
|
|
+ <title>Access-Control (Authorization) in Spring Security</title>
|
|
|

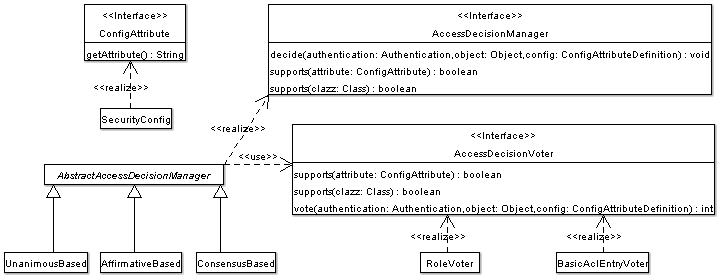

+ <para> The main interface resposible for making access-control decisions in Spring Security is
|
|
|
+ the <interfacename>AccessDecisionMananger</interfacename>. It has a
|
|
|
+ <methodname>decide</methodname> method which takes an
|
|
|
+ <interfacename>Authentication</interfacename> object representing the principal requesting
|
|
|
+ access, a <quote>secure object</quote> (see below) and a list of security metadata attributes
|
|
|
+ which apply for the object (such as a list of roles which are required for access to be
|
|
|
+ granted). </para>
|
|
|
<section>
|
|
|
<title>Security and AOP Advice</title>
|
|
|
- <para>If you're familiar with AOP, you'd be aware there are different
|
|
|
- types of advice available: before, after, throws and around. An around
|
|
|
- advice is very useful, because an advisor can elect whether or not to
|
|
|
- proceed with a method invocation, whether or not to modify the
|
|
|
- response, and whether or not to throw an exception. Spring Security
|
|
|
- provides an around advice for method invocations as well as web
|
|
|
- requests. We achieve an around advice for method invocations using Spring's
|
|
|
- standard AOP support and we achieve an around advice for web requests using a
|
|
|
- standard Filter.</para>
|
|
|
-
|
|
|
- <para>For those not familiar with AOP, the key point to understand is
|
|
|
- that Spring Security can help you protect method invocations as well
|
|
|
- as web requests. Most people are interested in securing method
|
|
|
- invocations on their services layer. This is because the services
|
|
|
- layer is where most business logic resides in current-generation J2EE
|
|
|
- applications (for clarification, the author disapproves of this design
|
|
|
- and instead advocates properly encapsulated domain objects together
|
|
|
- with the DTO, assembly, facade and transparent persistence patterns,
|
|
|
- but as use of anemic domain objects is the present mainstream approach, we'll
|
|
|
- talk about it here). If you just need to secure method invocations to
|
|
|
- the services layer, Spring's standard AOP (otherwise known as AOP Alliance)
|
|
|
- will be adequate. If you need to secure domain objects directly, you
|
|
|
- will likely find that AspectJ is worth considering.</para>
|
|
|
-
|
|
|
- <para>You can elect to perform method authorization using AspectJ or
|
|
|
- Spring AOP, or you can elect to perform web request authorization
|
|
|
- using filters. You can use zero, one, two or three of these approaches
|
|
|
- together. The mainstream usage is to perform some web request
|
|
|
- authorization, coupled with some Spring AOP method invocation
|
|
|
- authorization on the services layer.</para>
|
|
|
+ <para>If you're familiar with AOP, you'd be aware there are different types of advice
|
|
|
+ available: before, after, throws and around. An around advice is very useful, because an
|
|
|
+ advisor can elect whether or not to proceed with a method invocation, whether or not to
|
|
|
+ modify the response, and whether or not to throw an exception. Spring Security provides an
|
|
|
+ around advice for method invocations as well as web requests. We achieve an around advice
|
|
|
+ for method invocations using Spring's standard AOP support and we achieve an around advice
|
|
|
+ for web requests using a standard Filter.</para>
|
|
|
+ <para>For those not familiar with AOP, the key point to understand is that Spring Security can
|
|
|
+ help you protect method invocations as well as web requests. Most people are interested in
|
|
|
+ securing method invocations on their services layer. This is because the services layer is
|
|
|
+ where most business logic resides in current-generation J2EE applications. If you just need
|
|
|
+ to secure method invocations in the services layer, Spring's standard AOP (otherwise known
|
|
|
+ as AOP Alliance) will be adequate. If you need to secure domain objects directly, you will
|
|
|
+ likely find that AspectJ is worth considering.</para>
|
|
|
+ <para>You can elect to perform method authorization using AspectJ or Spring AOP, or you can
|
|
|
+ elect to perform web request authorization using filters. You can use zero, one, two or
|
|
|
+ three of these approaches together. The mainstream usage pattern is to perform some web
|
|
|
+ request authorization, coupled with some Spring AOP method invocation authorization on the
|
|
|
+ services layer.</para>
|
|
|
</section>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>AbstractSecurityInterceptor</title>
|
|
|
-
|
|
|
- <para>Each secure object type supported by Spring Security has its own class,
|
|
|
- which is a subclass of <classname>AbstractSecurityInterceptor</classname>.
|
|
|
- Importantly, by the time the <classname>AbstractSecurityInterceptor</classname> is called, the
|
|
|
- <classname>SecurityContextHolder</classname> will contain a valid
|
|
|
- <interfacename>Authentication</interfacename> if the principal has been
|
|
|
- authenticated.</para>
|
|
|
-
|
|
|
- <para><classname>AbstractSecurityInterceptor</classname> provides a
|
|
|
- consistent workflow for handling secure object requests, typically:
|
|
|
-
|
|
|
- <orderedlist>
|
|
|
- <listitem><para>Look up the "configuration attributes" associated with the
|
|
|
- present request</para></listitem>
|
|
|
- <listitem><para>Submitting the secure object, current <interfacename>Authentication</interfacename>
|
|
|
- and configuration attributes to the <interfacename>AccessDecisionManager</interfacename> for
|
|
|
- an authorization decision</para></listitem>
|
|
|
- <listitem><para>Optionally change the <interfacename>Authentication</interfacename> under which the invocation
|
|
|
- takes place</para></listitem>
|
|
|
- <listitem><para>Allow the secure object to proceed (assuming access was granted)</para></listitem>
|
|
|
- <listitem><para>Call the <literal>AfterInvocationManager</literal> if configured, once the invocation
|
|
|
- has returned.</para></listitem>
|
|
|
- </orderedlist>
|
|
|
- </para>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>What are Configuration Attributes?</title>
|
|
|
- <para>
|
|
|
- A "configuration attribute" can be thought of as a String that has special meaning to the classes used by
|
|
|
- <classname>AbstractSecurityInterceptor</classname>. They may be simple role names or have more complex meaning, depending on the
|
|
|
- how sophisticated the <interfacename>AccessDecisionManager</interfacename> implementation is.
|
|
|
- The <classname>AbstractSecurityInterceptor</classname> is configured with a <interfacename>SecurityMetadataSource</interfacename> which
|
|
|
- it uses to look up the attributes for a secure object. Usually this configuration will be hidden from the user. Configuration
|
|
|
- attributes will be entered as annotations on secured methods, or as access attributes on secured URLs (using the
|
|
|
- namespace <literal><intercept-url></literal> syntax).
|
|
|
- </para>
|
|
|
- </section>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>RunAsManager</title>
|
|
|
- <para>Assuming <interfacename>AccessDecisionManager</interfacename> decides to
|
|
|
- allow the request, the <classname>AbstractSecurityInterceptor</classname>
|
|
|
- will normally just proceed with the request. Having said that, on rare
|
|
|
- occasions users may want to replace the
|
|
|
- <interfacename>Authentication</interfacename> inside the
|
|
|
- <interfacename>SecurityContext</interfacename> with a different
|
|
|
- <interfacename>Authentication</interfacename>, which is handled by the
|
|
|
- <interfacename>AccessDecisionManager</interfacename> calling a
|
|
|
- <literal>RunAsManager</literal>. This might be useful in reasonably
|
|
|
- unusual situations, such as if a services layer method needs to call a
|
|
|
- remote system and present a different identity. Because Spring
|
|
|
- Security automatically propagates security identity from one server to
|
|
|
- another (assuming you're using a properly-configured RMI or
|
|
|
- HttpInvoker remoting protocol client), this may be useful.</para>
|
|
|
- </section>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>AfterInvocationManager</title>
|
|
|
- <para>Following the secure object proceeding and then returning -
|
|
|
- which may mean a method invocation completing or a filter chain
|
|
|
- proceeding - the <classname>AbstractSecurityInterceptor</classname> gets
|
|
|
- one final chance to handle the invocation. At this stage the
|
|
|
- <classname>AbstractSecurityInterceptor</classname> is interested in
|
|
|
- possibly modifying the return object. We might want this to happen
|
|
|
- because an authorization decision couldn't be made "on the way in" to
|
|
|
- a secure object invocation. Being highly pluggable,
|
|
|
- <classname>AbstractSecurityInterceptor</classname> will pass control to an
|
|
|
- <literal>AfterInvocationManager</literal> to actually modify the
|
|
|
- object if needed. This class can even entirely replace the object, or
|
|
|
- throw an exception, or not change it in any way.</para>
|
|
|
-
|
|
|
- <para><classname>AbstractSecurityInterceptor</classname> and its related objects
|
|
|
- are shown in <xref linkend="abstract-security-interceptor"/>.
|
|
|
-
|
|
|
- <figure xml:id="abstract-security-interceptor">
|
|
|
- <title>The key "secure object" model</title>
|
|
|
- <mediaobject>
|
|
|
- <imageobject role="html">
|
|
|
- <imagedata align="center" fileref="images/SecurityInterception.gif" format="GIF"/>
|
|
|
- </imageobject>
|
|
|
- <imageobject role="fo">
|
|
|
- <imagedata align="center" fileref="resources/images/SecurityInterception.gif" format="GIF"/>
|
|
|
- </imageobject>
|
|
|
- </mediaobject>
|
|
|
- </figure>
|
|
|
- </para>
|
|
|
- </section>
|
|
|
-
|
|
|
- <section>
|
|
|
- <title>Extending the Secure Object Model</title>
|
|
|
- <para>Only developers contemplating an entirely new way of
|
|
|
- intercepting and authorizing requests would need to use secure objects
|
|
|
- directly. For example, it would be possible to build a new secure
|
|
|
- object to secure calls to a messaging system. Anything that requires
|
|
|
- security and also provides a way of intercepting a call (like the AOP
|
|
|
- around advice semantics) is capable of being made into a secure
|
|
|
- object. Having said that, most Spring applications will simply use the
|
|
|
- three currently supported secure object types (AOP Alliance
|
|
|
- <classname>MethodInvocation</classname>, AspectJ
|
|
|
- <literal>JoinPoint</literal> and web request
|
|
|
- <classname>FilterInvocation</classname>) with complete
|
|
|
- transparency.</para>
|
|
|
+ <section xml:id="secure-objects">
|
|
|
+ <title>Secure Objects and the <classname>AbstractSecurityInterceptor</classname></title>
|
|
|
+ <para>So what <emphasis>is</emphasis> a <quote>secure object</quote> anyway? Spring Security
|
|
|
+ uses the term to refer to any object that can have security (such as an authorization
|
|
|
+ decision) applied to it. The most common examples are method invocations and web
|
|
|
+ requests.</para>
|
|
|
+ <para>Each supported secure object type has its own interceptor class, which is a subclass of
|
|
|
+ <classname>AbstractSecurityInterceptor</classname>. Importantly, by the time the
|
|
|
+ <classname>AbstractSecurityInterceptor</classname> is called, the
|
|
|
+ <classname>SecurityContextHolder</classname> will contain a valid
|
|
|
+ <interfacename>Authentication</interfacename> if the principal has been
|
|
|
+ authenticated.</para>
|
|
|
+ <para><classname>AbstractSecurityInterceptor</classname> provides a consistent workflow for
|
|
|
+ handling secure object requests, typically: <orderedlist>
|
|
|
+ <listitem>
|
|
|
+ <para>Look up the <quote>configuration attributes</quote> associated with the present
|
|
|
+ request</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Submitting the secure object, current
|
|
|
+ <interfacename>Authentication</interfacename> and configuration attributes to the
|
|
|
+ <interfacename>AccessDecisionManager</interfacename> for an authorization
|
|
|
+ decision</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Optionally change the <interfacename>Authentication</interfacename> under which
|
|
|
+ the invocation takes place</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Allow the secure object invocation to proceed (assuming access was granted)</para>
|
|
|
+ </listitem>
|
|
|
+ <listitem>
|
|
|
+ <para>Call the <interfacename>AfterInvocationManager</interfacename> if configured, once
|
|
|
+ the invocation has returned.</para>
|
|
|
+ </listitem>
|
|
|
+ </orderedlist></para>
|
|
|
+ <section>
|
|
|
+ <title>What are Configuration Attributes?</title>
|
|
|
+ <para> A <quote>configuration attribute</quote> can be thought of as a String that has
|
|
|
+ special meaning to the classes used by <classname>AbstractSecurityInterceptor</classname>.
|
|
|
+ They may be simple role names or have more complex meaning, depending on the how
|
|
|
+ sophisticated the <interfacename>AccessDecisionManager</interfacename> implementation is.
|
|
|
+ The <classname>AbstractSecurityInterceptor</classname> is configured with a
|
|
|
+ <interfacename>SecurityMetadataSource</interfacename> which it uses to look up the
|
|
|
+ attributes for a secure object. Usually this configuration will be hidden from the user.
|
|
|
+ Configuration attributes will be entered as annotations on secured methods, or as access
|
|
|
+ attributes on secured URLs (using the namespace <literal><intercept-url></literal>
|
|
|
+ syntax). </para>
|
|
|
+ </section>
|
|
|
+ <section>
|
|
|
+ <title>RunAsManager</title>
|
|
|
+ <para>Assuming <interfacename>AccessDecisionManager</interfacename> decides to allow the
|
|
|
+ request, the <classname>AbstractSecurityInterceptor</classname> will normally just proceed
|
|
|
+ with the request. Having said that, on rare occasions users may want to replace the
|
|
|
+ <interfacename>Authentication</interfacename> inside the
|
|
|
+ <interfacename>SecurityContext</interfacename> with a different
|
|
|
+ <interfacename>Authentication</interfacename>, which is handled by the
|
|
|
+ <interfacename>AccessDecisionManager</interfacename> calling a
|
|
|
+ <literal>RunAsManager</literal>. This might be useful in reasonably unusual situations,
|
|
|
+ such as if a services layer method needs to call a remote system and present a different
|
|
|
+ identity. Because Spring Security automatically propagates security identity from one
|
|
|
+ server to another (assuming you're using a properly-configured RMI or HttpInvoker remoting
|
|
|
+ protocol client), this may be useful.</para>
|
|
|
+ </section>
|
|
|
+ <section>
|
|
|
+ <title>AfterInvocationManager</title>
|
|
|
+ <para>Following the secure object proceeding and then returning - which may mean a method
|
|
|
+ invocation completing or a filter chain proceeding - the
|
|
|
+ <classname>AbstractSecurityInterceptor</classname> gets one final chance to handle the
|
|
|
+ invocation. At this stage the <classname>AbstractSecurityInterceptor</classname> is
|
|
|
+ interested in possibly modifying the return object. We might want this to happen because
|
|
|
+ an authorization decision couldn't be made <quote>on the way in</quote> to a secure object invocation.
|
|
|
+ Being highly pluggable, <classname>AbstractSecurityInterceptor</classname> will pass
|
|
|
+ control to an <literal>AfterInvocationManager</literal> to actually modify the object if
|
|
|
+ needed. This class can even entirely replace the object, or throw an exception, or not
|
|
|
+ change it in any way as it chooses.</para>
|
|
|
+ <para><classname>AbstractSecurityInterceptor</classname> and its related objects are shown
|
|
|
+ in <xref linkend="abstract-security-interceptor"/>. <figure
|
|
|
+ xml:id="abstract-security-interceptor">
|
|
|
+ <title>Security interceptors and the <quote>secure object</quote> model</title>
|
|
|
+ <mediaobject>
|
|
|
+ <imageobject>
|
|
|
+ <imagedata align="center" fileref="images/security-interception.png" format="PNG"/>
|
|
|
+ </imageobject>
|
|
|
+ </mediaobject>
|
|
|
+ </figure></para>
|
|
|
+ </section>
|
|
|
+ <section>
|
|
|
+ <title>Extending the Secure Object Model</title>
|
|
|
+ <para>Only developers contemplating an entirely new way of intercepting and authorizing
|
|
|
+ requests would need to use secure objects directly. For example, it would be possible to
|
|
|
+ build a new secure object to secure calls to a messaging system. Anything that requires
|
|
|
+ security and also provides a way of intercepting a call (like the AOP around advice
|
|
|
+ semantics) is capable of being made into a secure object. Having said that, most Spring
|
|
|
+ applications will simply use the three currently supported secure object types (AOP
|
|
|
+ Alliance <classname>MethodInvocation</classname>, AspectJ <classname>JoinPoint</classname>
|
|
|
+ and web request <classname>FilterInvocation</classname>) with complete
|
|
|
+ transparency.</para>
|
|
|
+ </section>
|
|
|
</section>
|
|
|
</section>
|
|
|
- </section>
|
|
|
-</chapter>
|
|
|
+</chapter>
|
Luke Taylor
