@@ -1,29 +1,96 @@
|
|
|
-[[jc-authorize-requests]]
|
|
|
-== Authorize Requests
|
|
|
-Our examples have only required users to be authenticated and have done so for every URL in our application.
|
|
|
-We can specify custom requirements for our URLs by adding multiple children to our `http.authorizeRequests()` method.
|
|
|
-For example:
|
|
|
+[[servlet-authorization-filtersecurityinterceptor]]
|
|
|
+= Authorize HttpServletRequest with FilterSecurityInterceptor
|
|
|
+:figures: images/servlet/authorization
|
|
|
+:icondir: images/icons
|
|
|
|
|
|
+This section builds on <<servlet-architecture,Servlet Architecture and Implementation>> by digging deeper into how <<authorization>> works within Servlet based applications.
|
|
|
|
|
|
-[source,java]
|
|
|
+The {security-api-url}org/springframework/security/web/access/intercept/FilterSecurityInterceptor.html[`FilterSecurityInterceptor`] provides <<authorization>> for ``HttpServletRequest``s.
|
|
|
+It is inserted into the <<servlet-filterchainproxy>> as one of the <<servlet-security-filters>>.
|
|
|
+
|
|
|

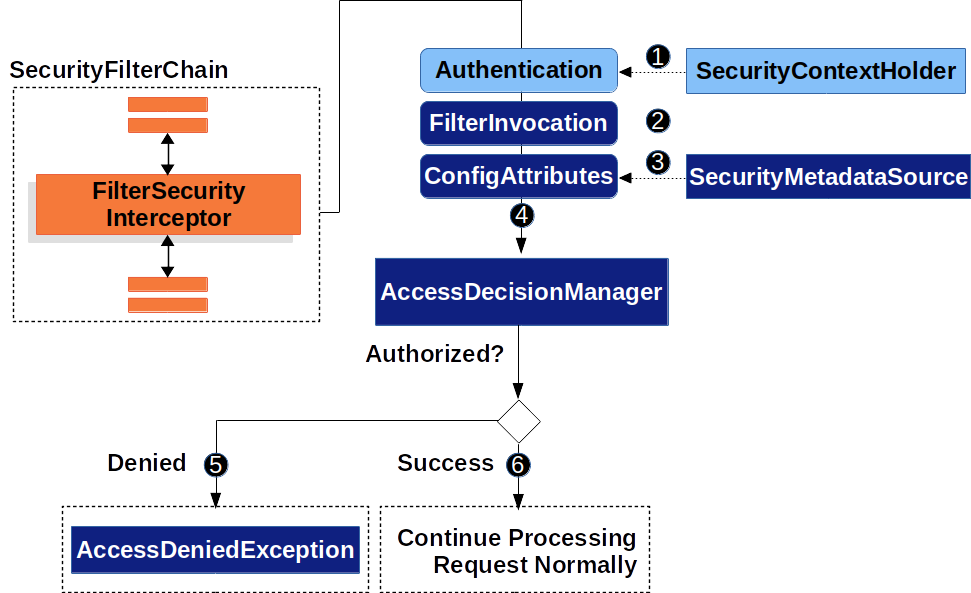

+.Authorize HttpServletRequest
|
|
|
+image::{figures}/filtersecurityinterceptor.png[]
|
|
|
+
|
|
|
+* image:{icondir}/number_1.png[] First, the `FilterSecurityInterceptor` obtains an <<servlet-authentication-authentication>> from the <<servlet-authentication-securitycontextholder>>.
|
|
|
+* image:{icondir}/number_2.png[] Second, `FilterSecurityInterceptor` creates a {security-api-url}org/springframework/security/web/FilterInvocation.html[`FilterInvocation`] from the `HttpServletRequest`, `HttpServletResponse`, and `FilterChain` that are passed into the `FilterSecurityInterceptor`.
|
|
|
+// FIXME: link to FilterInvocation
|
|
|
+* image:{icondir}/number_3.png[] Next, it passes the `FilterInvocation` to `SecurityMetadataSource` to get the ``ConfigAttribute``s.
|
|
|
+* image:{icondir}/number_4.png[] Finally, it passes the `Authentication`, `FilterInvocation`, and ``ConfigAttribute``s to the `AccessDecisionManager`.
|
|
|
+** image:{icondir}/number_5.png[] If authorization is denied, an `AccessDeniedException` is thrown.
|
|
|
+In this case the <<servlet-exceptiontranslationfilter,`ExceptionTranslationFilter`>> handles the `AccessDeniedException`.
|
|
|
+** image:{icondir}/number_6.png[] If access is granted, `FilterSecurityInterceptor` continues with the <<servlet-filters-review,FilterChain>> which allows the application to process normally.
|
|
|
+
|
|
|
+// configuration (xml/java)
|
|
|
+
|
|
|
+By default, Spring Security's authorization will require all requests to be authenticated.
|
|
|
+The explicit configuration looks like:
|
|
|
+
|
|
|
+.Every Request Must be Authenticated
|
|
|
+====
|
|
|
+.Java
|
|
|
+[source,java,role="primary"]
|
|
|
+----
|
|
|
+protected void configure(HttpSecurity http) throws Exception {
|
|
|
+ http
|
|
|
+ // ...
|
|
|
+ .authorizeRequests(authorize -> authorize
|
|
|
+ .anyRequest().authenticated()
|
|
|
+ );
|
|
|
+}
|
|
|
+----
|
|
|
+
|
|
|
+.XML
|
|
|
+[source,xml,role="secondary"]
|
|
|
+----
|
|
|
+<http>
|
|
|
+ <!-- ... -->
|
|
|
+ <intercept-url pattern="/**" access="authenticated"/>
|
|
|
+</http>
|
|
|
+----
|
|
|
+====
|
|
|
+
|
|
|
+We can configure Spring Security to have different rules by adding more rules in order of precedence.
|
|
|
+
|
|
|
+.Authorize Requests
|
|
|
+====
|
|
|
+.Java
|
|
|
+[source,java,role="primary"]
|
|
|
----
|
|
|
protected void configure(HttpSecurity http) throws Exception {
|
|
|
http
|
|
|
+ // ...
|
|
|
.authorizeRequests(authorize -> authorize // <1>
|
|
|
- .antMatchers("/resources/**", "/signup", "/about").permitAll() // <2>
|
|
|
- .antMatchers("/admin/**").hasRole("ADMIN") // <3>
|
|
|
- .antMatchers("/db/**").access("hasRole('ADMIN') and hasRole('DBA')") // <4>
|
|
|
- .anyRequest().authenticated() // <5>
|
|
|
- )
|
|
|
- .formLogin(withDefaults());
|
|
|
+ .mvcMatchers("/resources/**", "/signup", "/about").permitAll() // <2>
|
|
|
+ .mvcMatchers("/admin/**").hasRole("ADMIN") // <3>
|
|
|
+ .mvcMatchers("/db/**").access("hasRole('ADMIN') and hasRole('DBA')") // <4>
|
|
|
+ .anyRequest().denyAll() // <5>
|
|
|
+ );
|
|
|
}
|
|
|
----
|
|
|
|
|
|
-<1> There are multiple children to the `http.authorizeRequests()` method each matcher is considered in the order they were declared.
|
|
|
+.XML
|
|
|
+[source,xml,role="secondary"]
|
|
|
+----
|
|
|
+<http> <!--1-->
|
|
|
+ <!-- ... -->
|
|
|
+ <!--2-->
|
|
|
+ <intercept-url pattern="/resources/**" access="permitAll"/>
|
|
|
+ <intercept-url pattern="/signup" access="permitAll"/>
|
|
|
+ <intercept-url pattern="/about" access="permitAll"/>
|
|
|
+
|
|
|
+ <intercept-url pattern="/admin/**" access="hasRole('ADMIN')"/> <!--3-->
|
|
|
+ <intercept-url pattern="/db/**" access="hasRole('ADMIN') and hasRole('DBA')"/> <!--4-->
|
|
|
+ <intercept-url pattern="/**" access="denyAll"/> <!--5-->
|
|
|
+</http>
|
|
|
+----
|
|
|
+====
|
|
|
+<1> There are multiple authorization rules specified.
|
|
|
+Each rule is considered in the order they were declared.
|
|
|
<2> We specified multiple URL patterns that any user can access.
|
|
|
Specifically, any user can access a request if the URL starts with "/resources/", equals "/signup", or equals "/about".
|
|
|
<3> Any URL that starts with "/admin/" will be restricted to users who have the role "ROLE_ADMIN".
|
|
|
You will notice that since we are invoking the `hasRole` method we do not need to specify the "ROLE_" prefix.
|
|
|
<4> Any URL that starts with "/db/" requires the user to have both "ROLE_ADMIN" and "ROLE_DBA".
|
|
|
You will notice that since we are using the `hasRole` expression we do not need to specify the "ROLE_" prefix.
|
|
|
-<5> Any URL that has not already been matched on only requires that the user be authenticated
|
|
|
+<5> Any URL that has not already been matched on is denied access.
|
|
|
+This is a good strategy if you do not want to accidentally forget to update your authorization rules.
|
Rob Winch
